Commercially Available Parts
Common Parts¶
| Part | Image | URL | Qty. Need | Note |
|---|---|---|---|---|

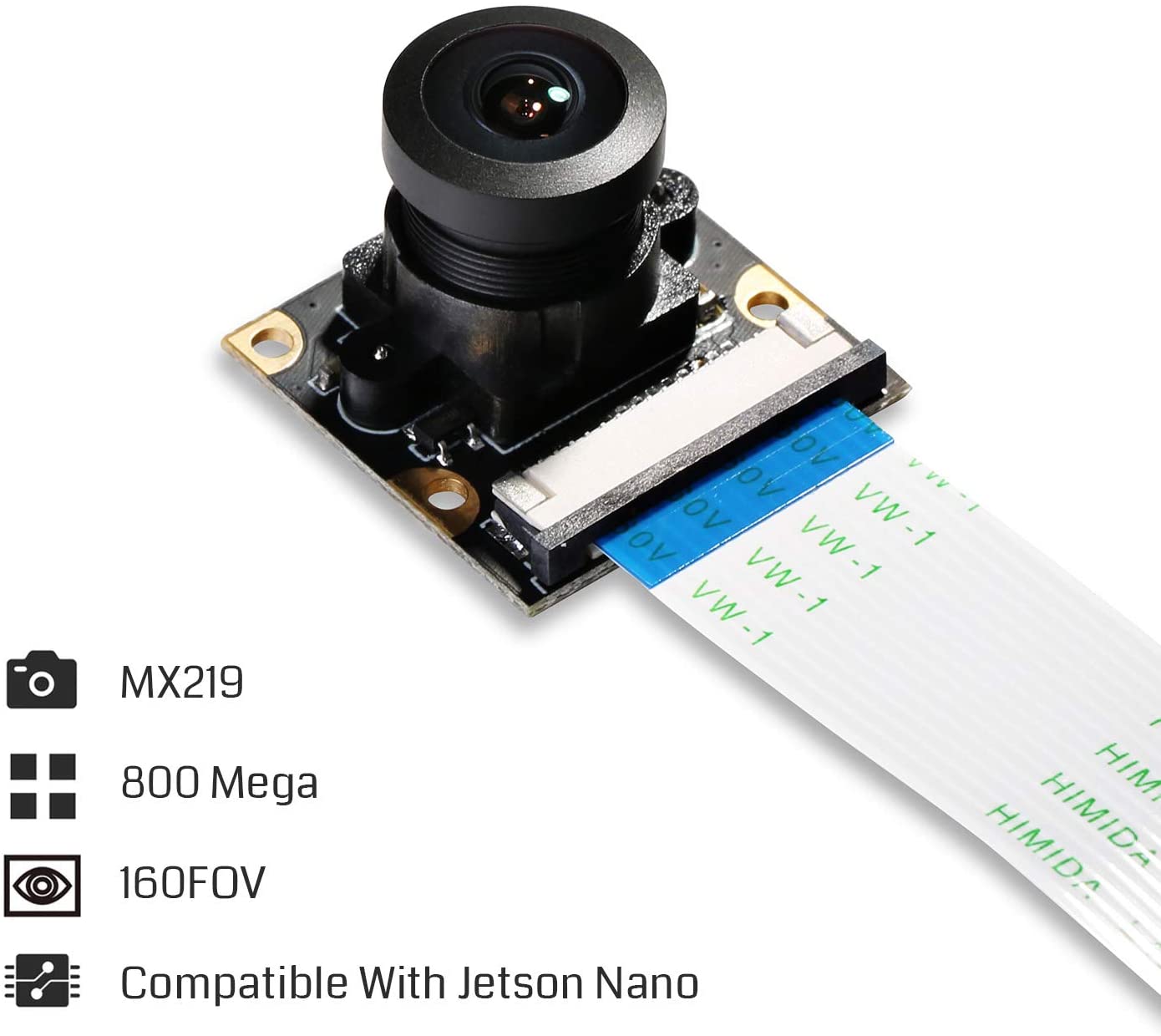

| Camera |  | Amazon | 1 | Compatible with NVIDIA Jetson Nano Camera IMX219-160 8-Megapixels Camera |

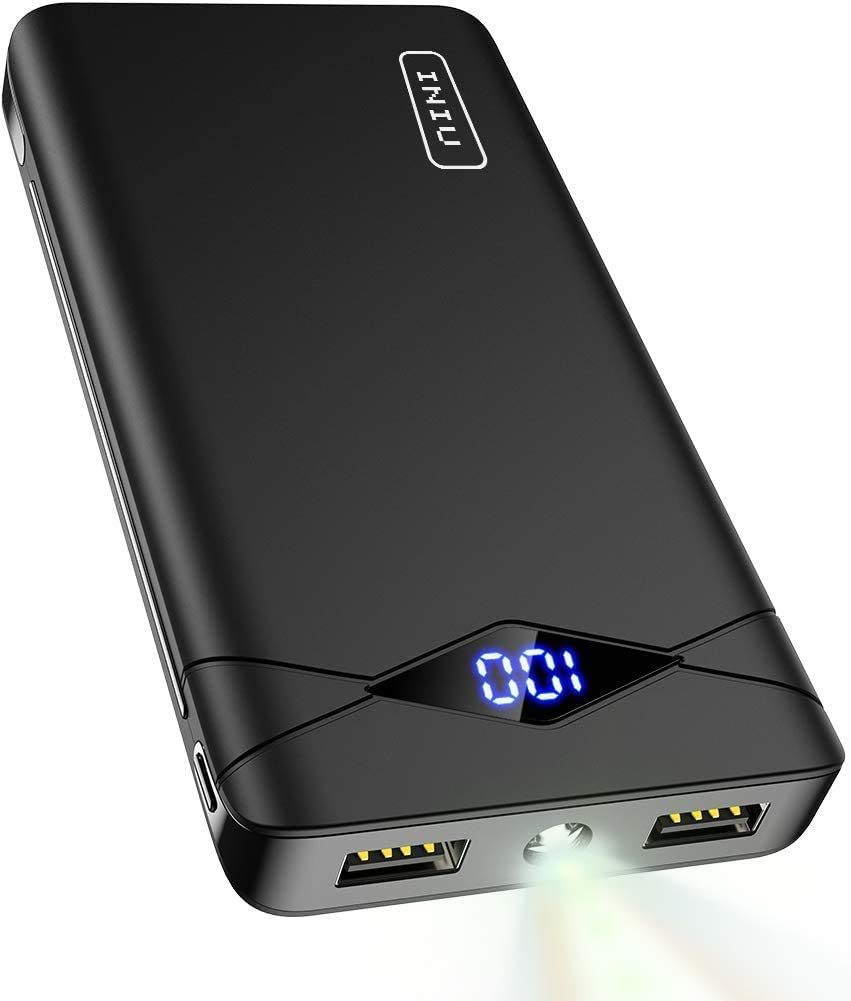

| Power Bank |  | Amazon | 1 | Power Bank, LED Display 10000mAh Portable Charger, Dual 3A High-Speed 2 USB Ports |

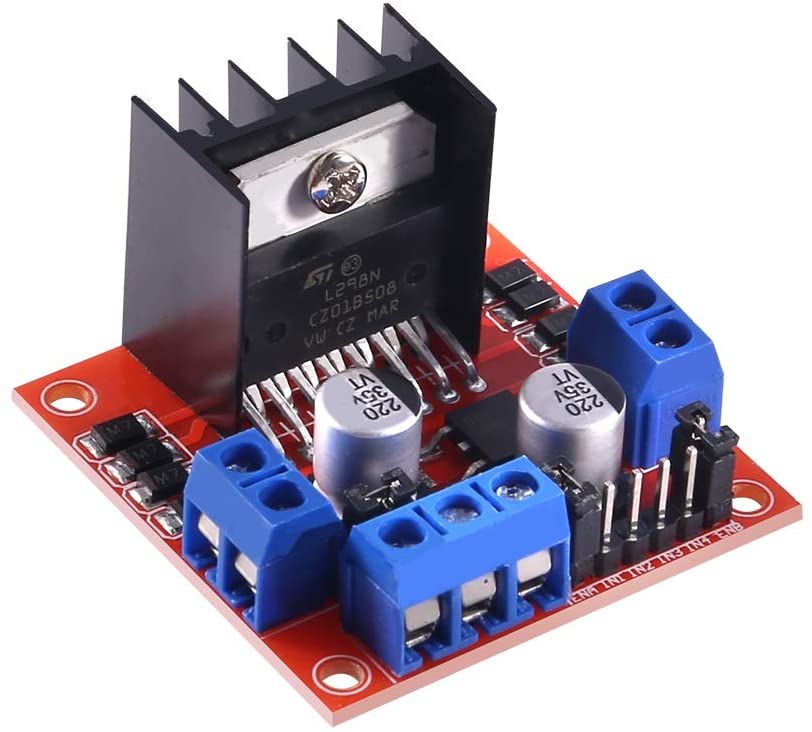

| Motor Driver |  | Amazon | 1 | L298N Stepper Motor Driver Controller Board Dual H Bridge Module |

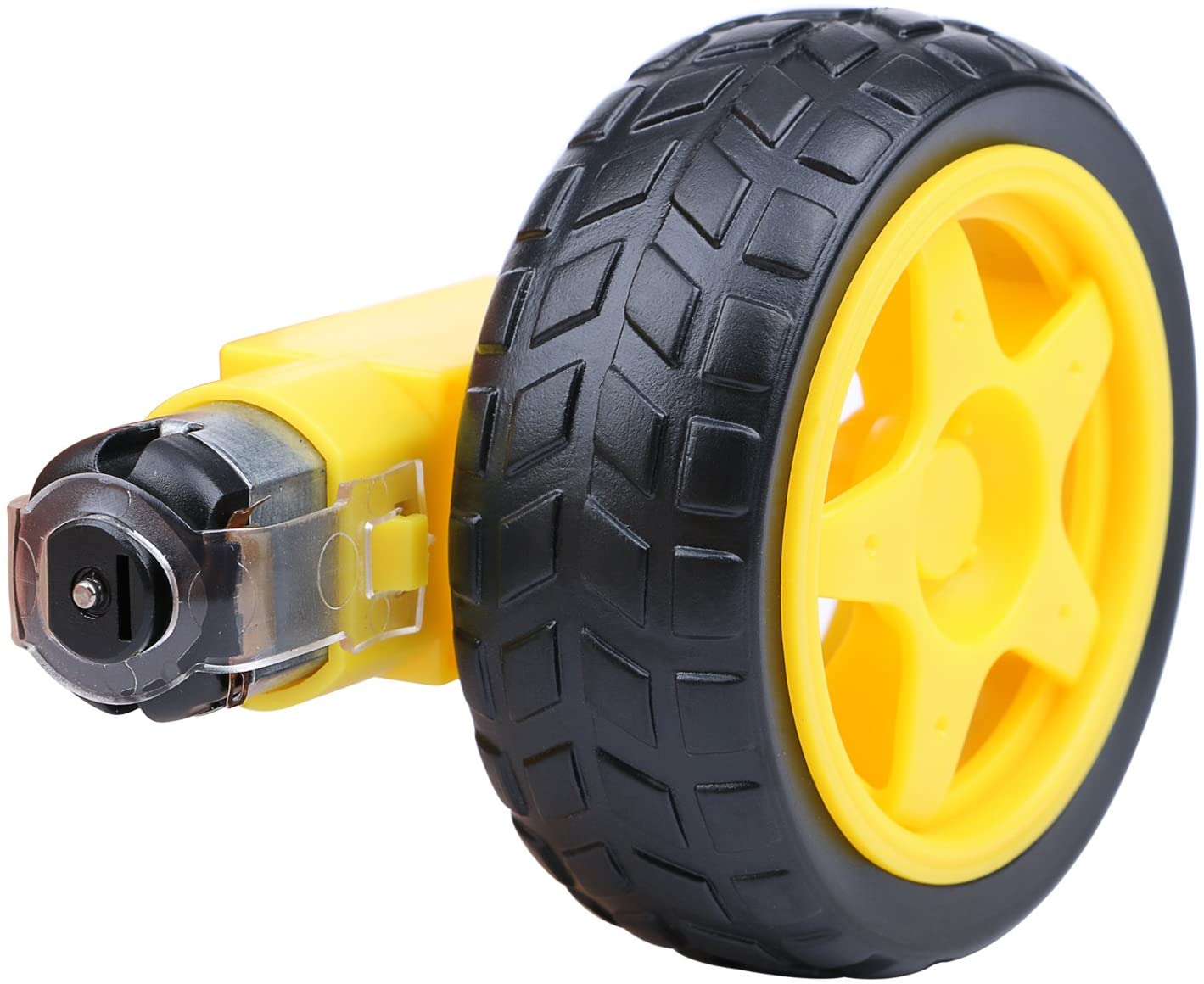

| TT Motor + Wheel |  | Amazon | 2 | 4pcs DC Electric Motor 3-6V Dual Shaft Geared TT Magnetic Gearbox Engine with 4Pcs Plastic Car Tire Wheel |

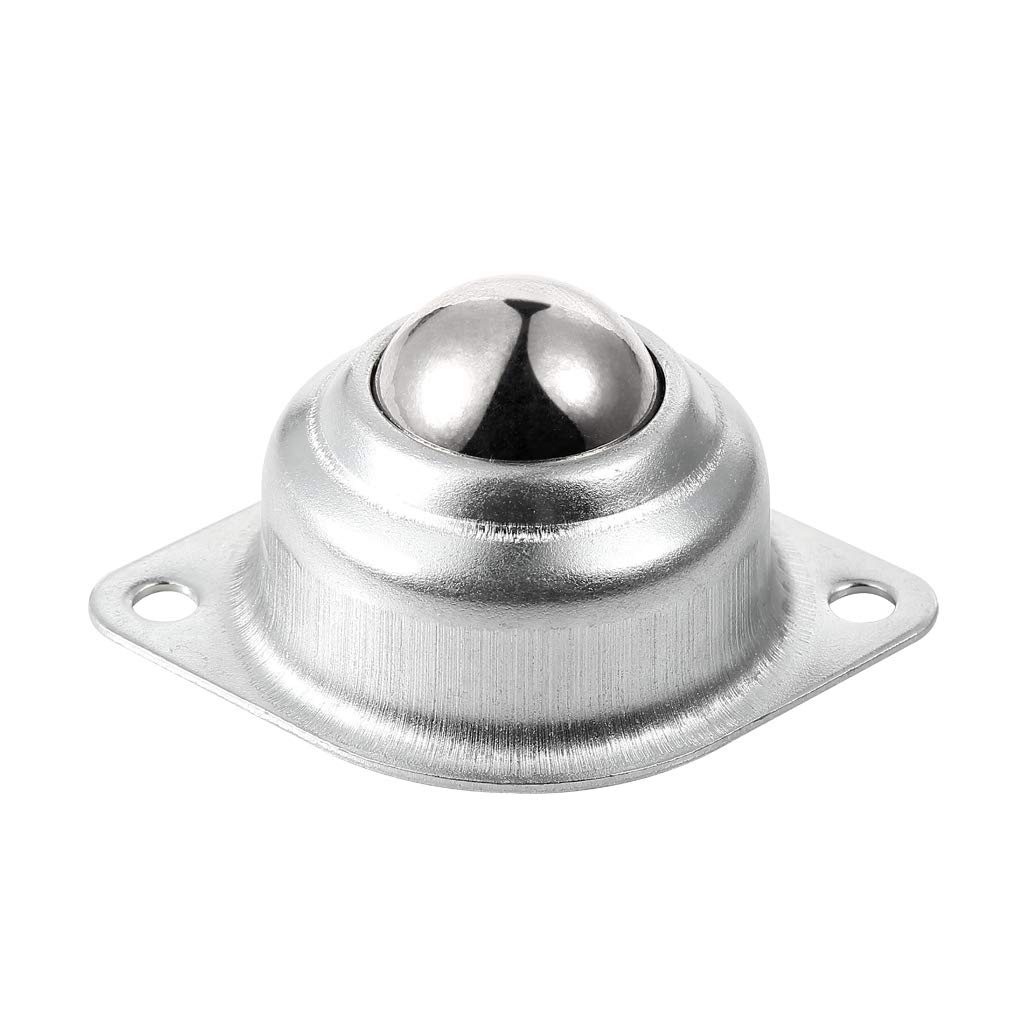

| Rolling Ball Transfer |  | Amazon | 1 | 1” Rolling Ball Transfers |

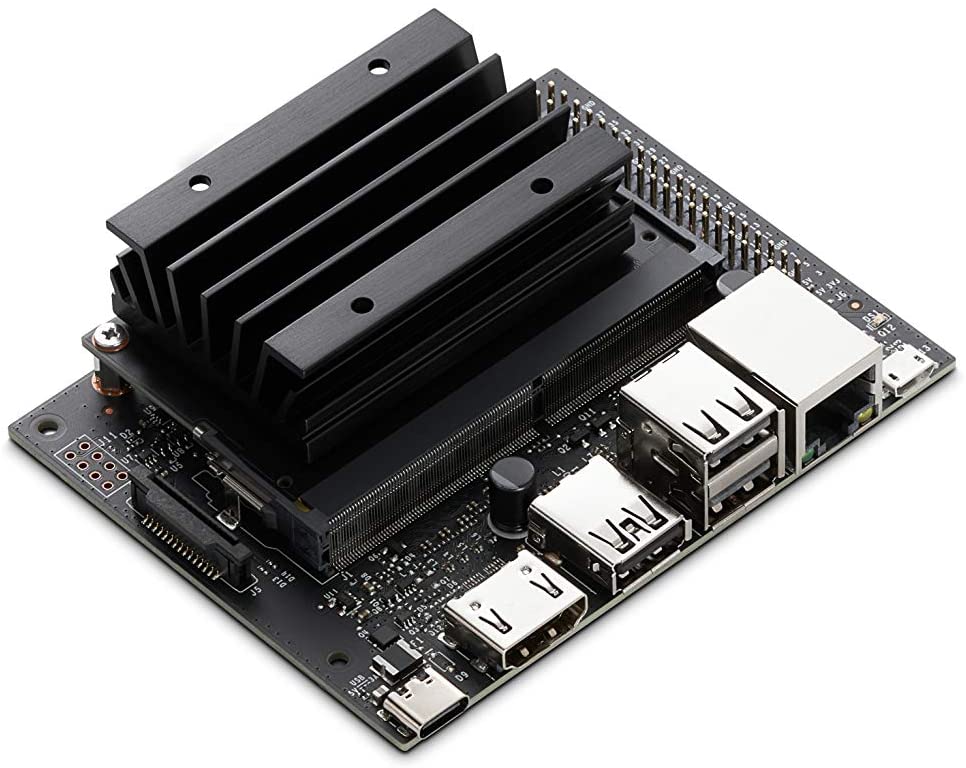

| NVIDIA Jetson Nano 2GB * |  | Amazon | 1 | Series: 945-13541-0000-000 includes usb wifi adapter and cable. Series: 945-13541-0001-000 does not include adapter and cable. |

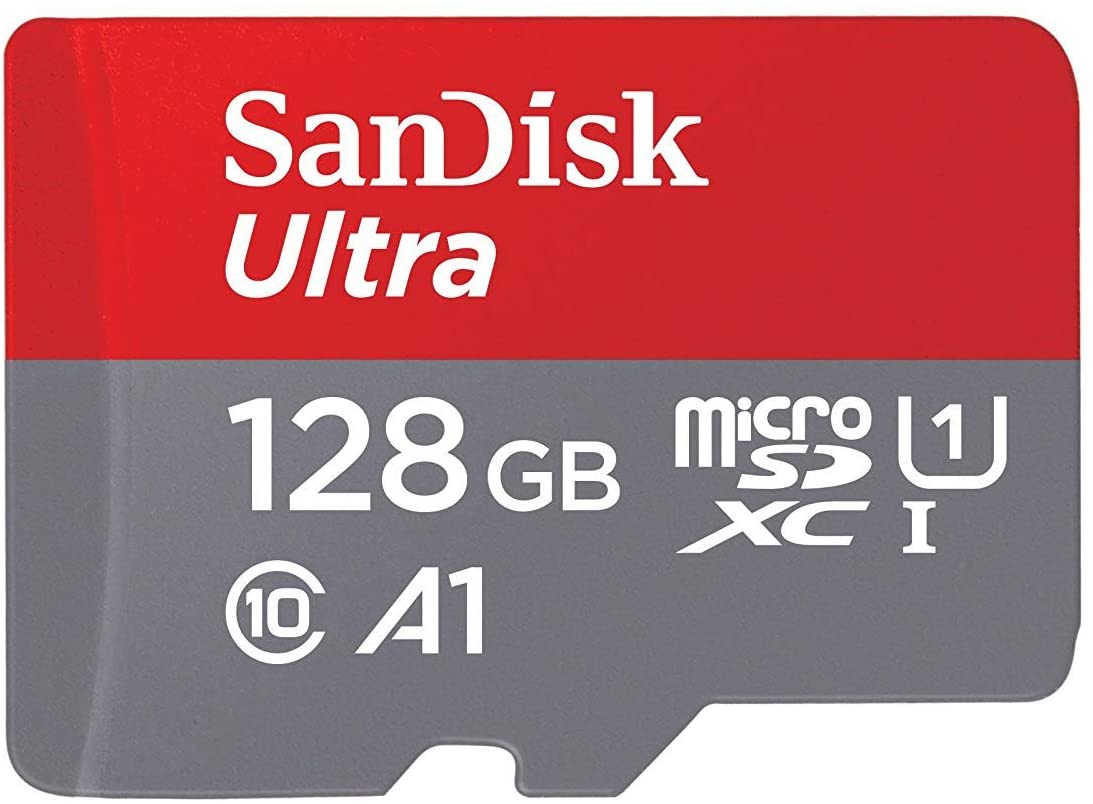

| MicroSD Card * |  | Amazon | 1 | 128 GB |
Important
- Our JeNaBot product does NOT include NVIDIA Jeson Nano 2B and MicroSD Card
Wires and Cables¶
| Part | Image | URL | Qty. Need | Note |
|---|---|---|---|---|

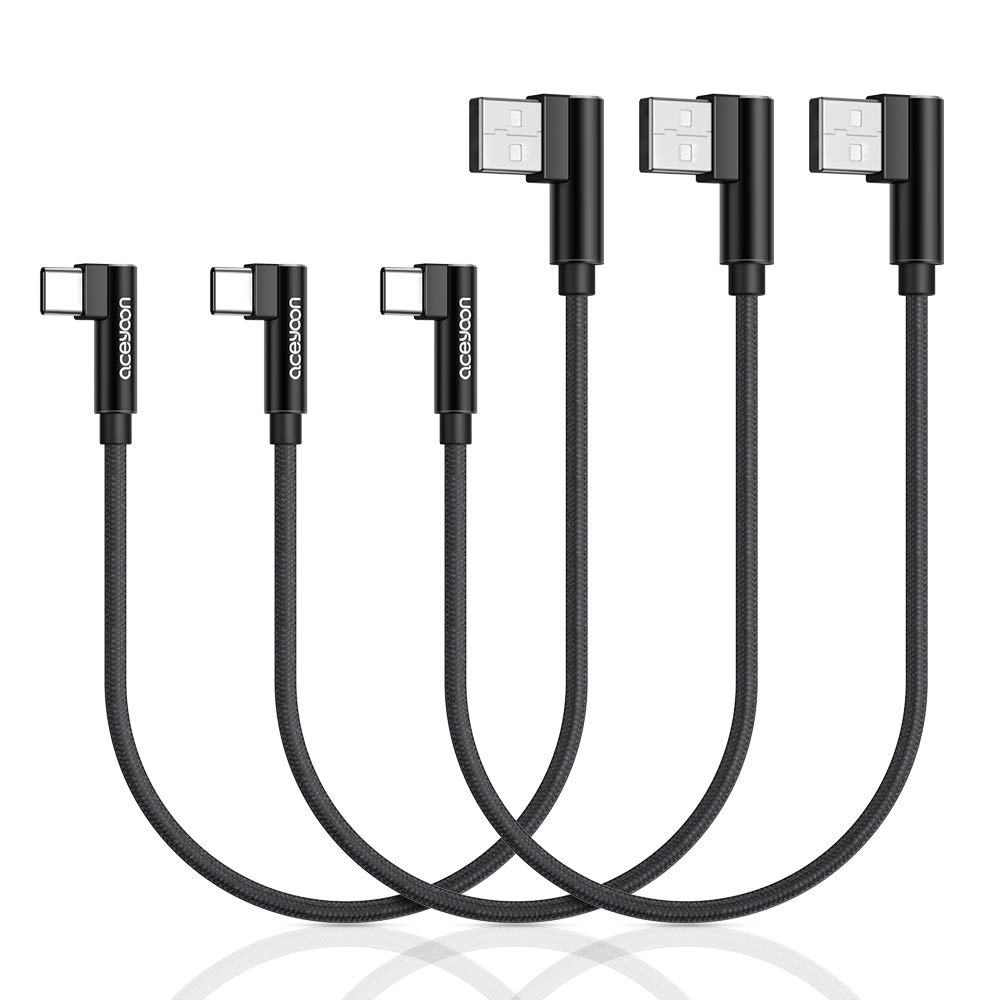

| USB C |  | Amazon | 1 | Right Angle USB C 1ft |

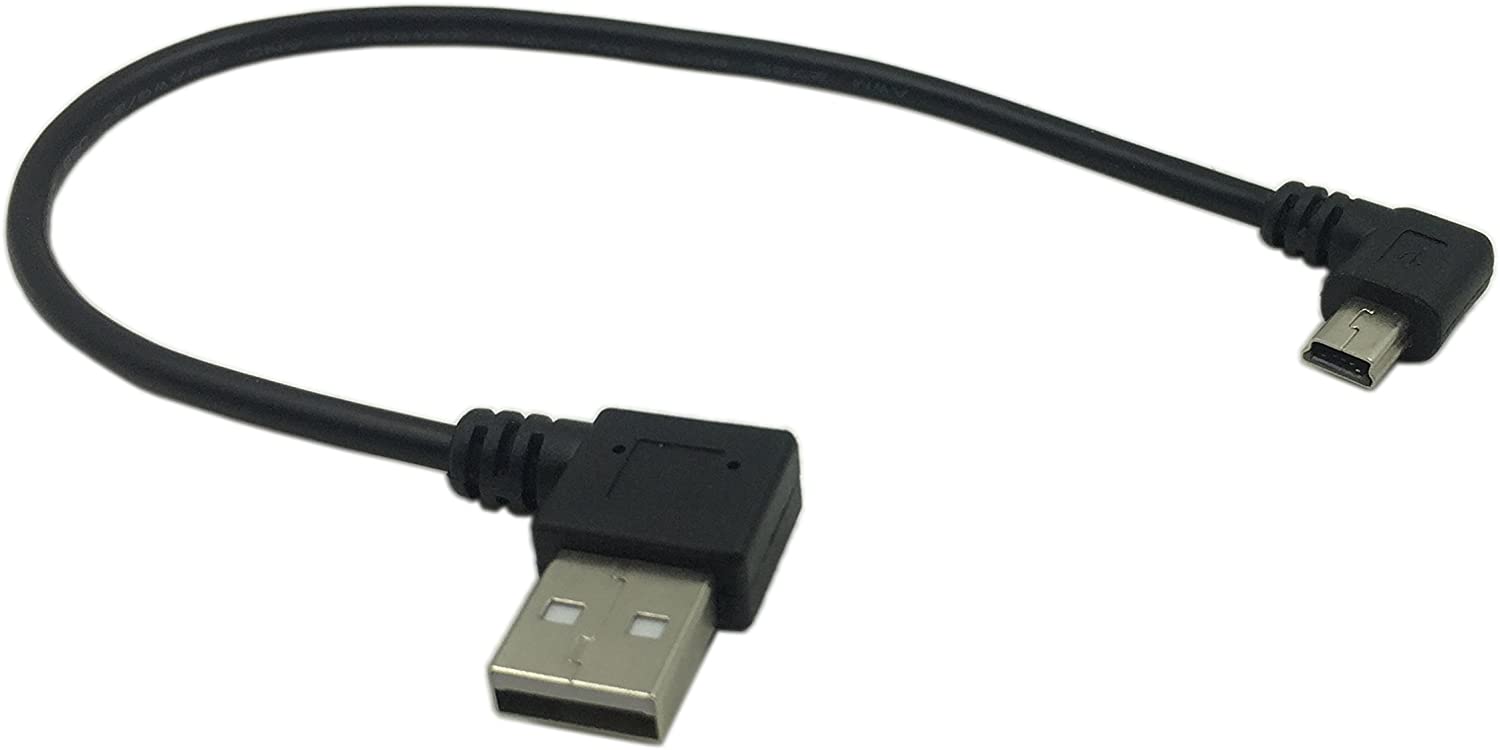

| USB Type A |  | Amazon | 1 | USB Type A 2.0 Left Angle Male 9 inches |
Bolts and Nuts¶
| Part | Image | URL | Qty. Need | Note |
|---|---|---|---|---|

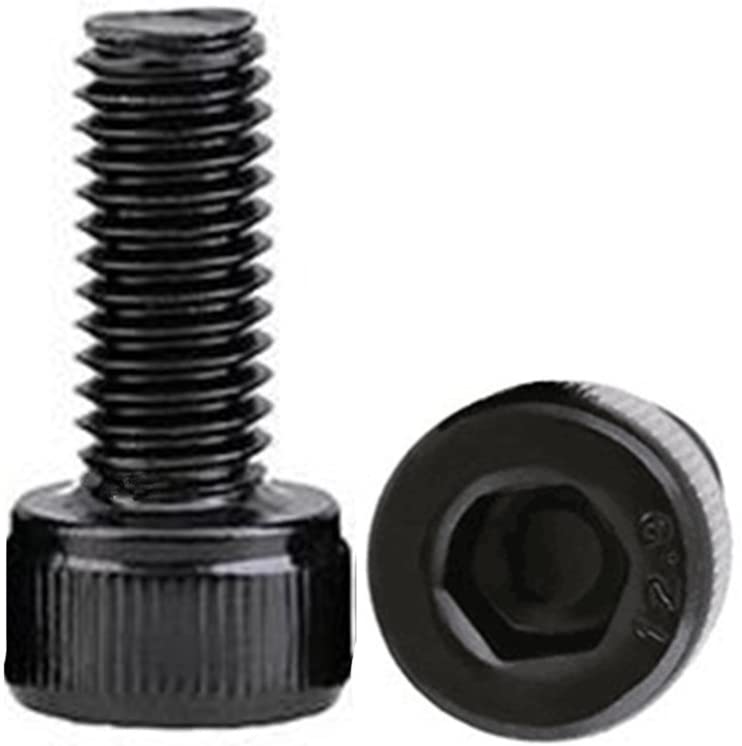

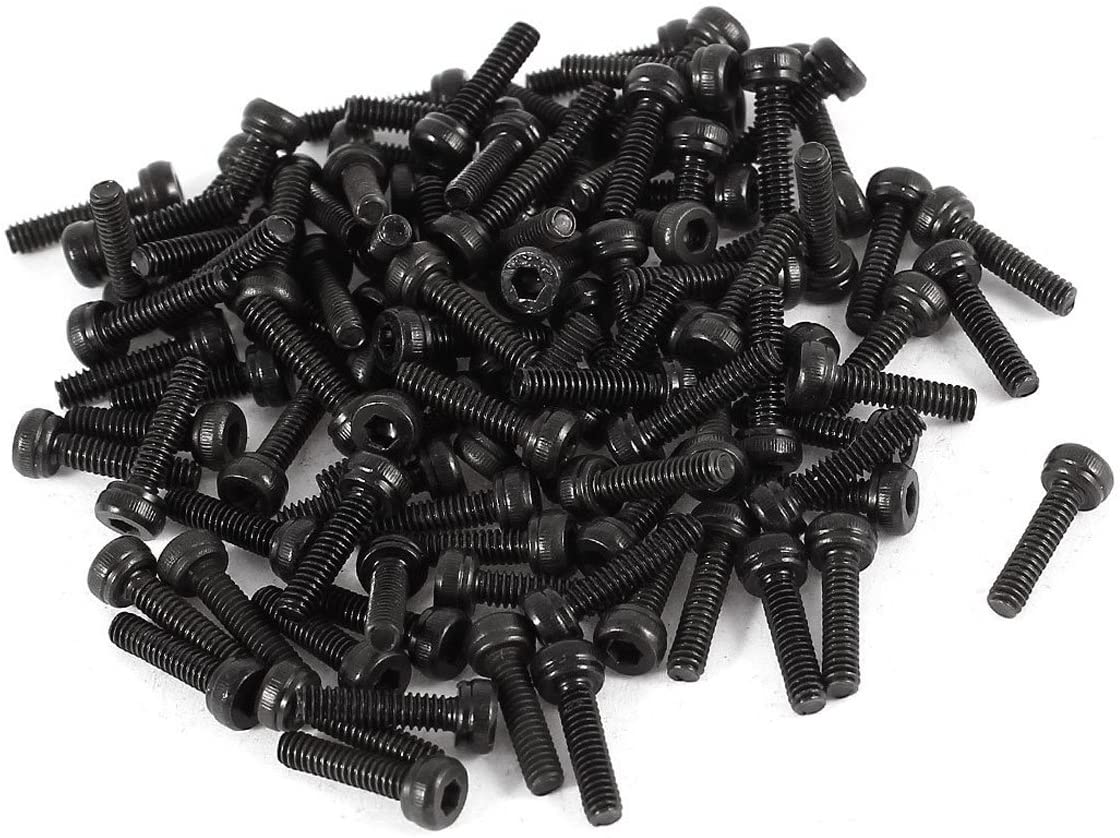

| M3 x 8mm |  | Amazon | 8 | Hex Socket Head Cap ,Black Oxide Finish |
| M3 x 10mm | | Amazon | 6 | Hex Socket Head Cap ,Black Oxide Finish |

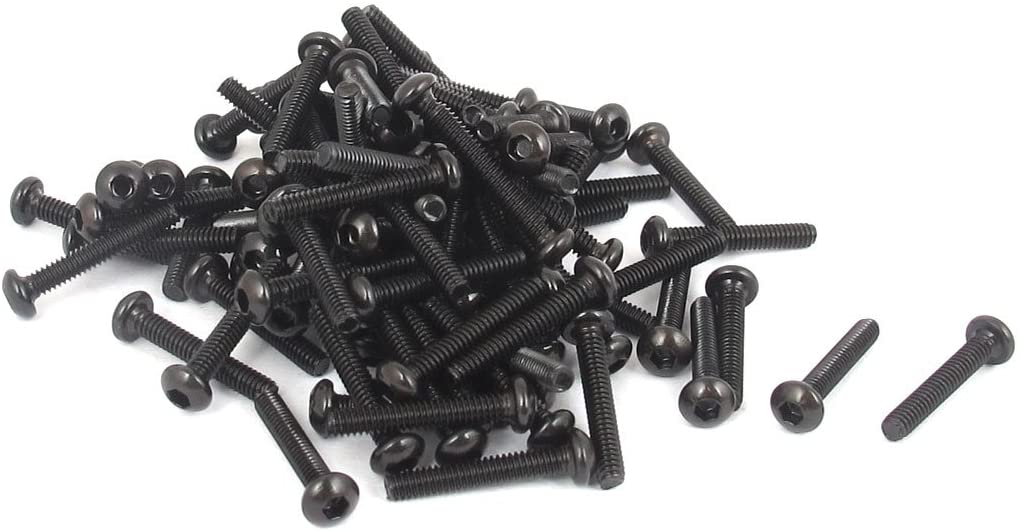

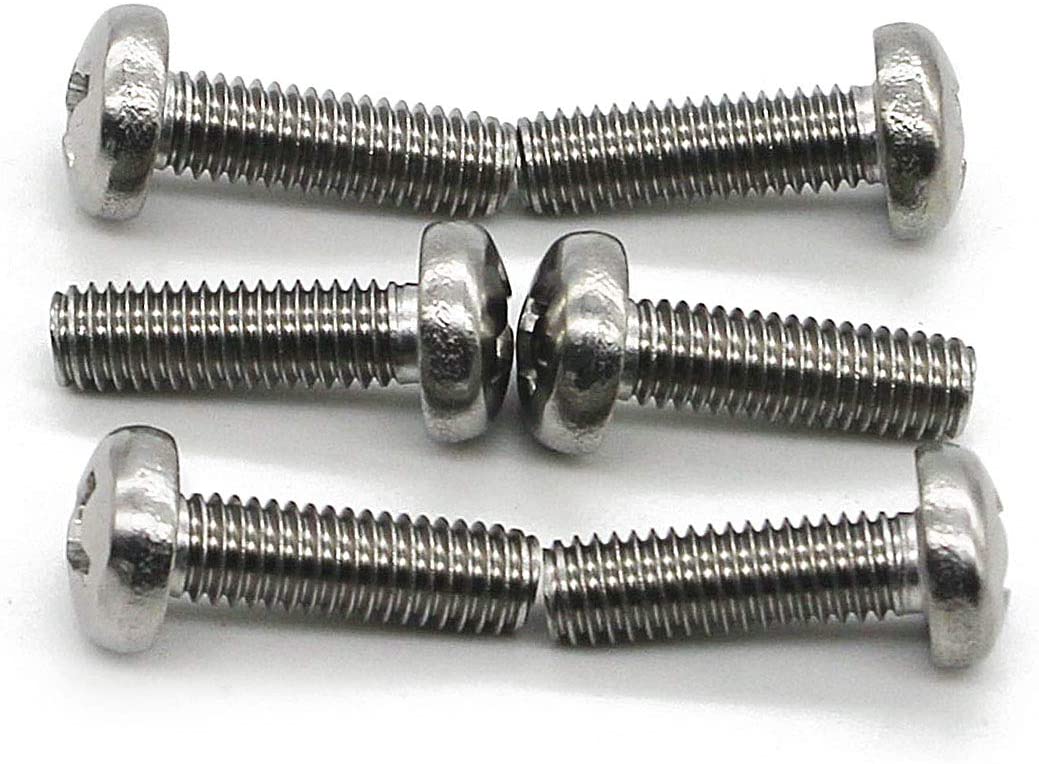

| M3 x 25mm |  | Amazon | 9 | Pan Head Phillips Machine Screws,18-8 Stainless Steel |

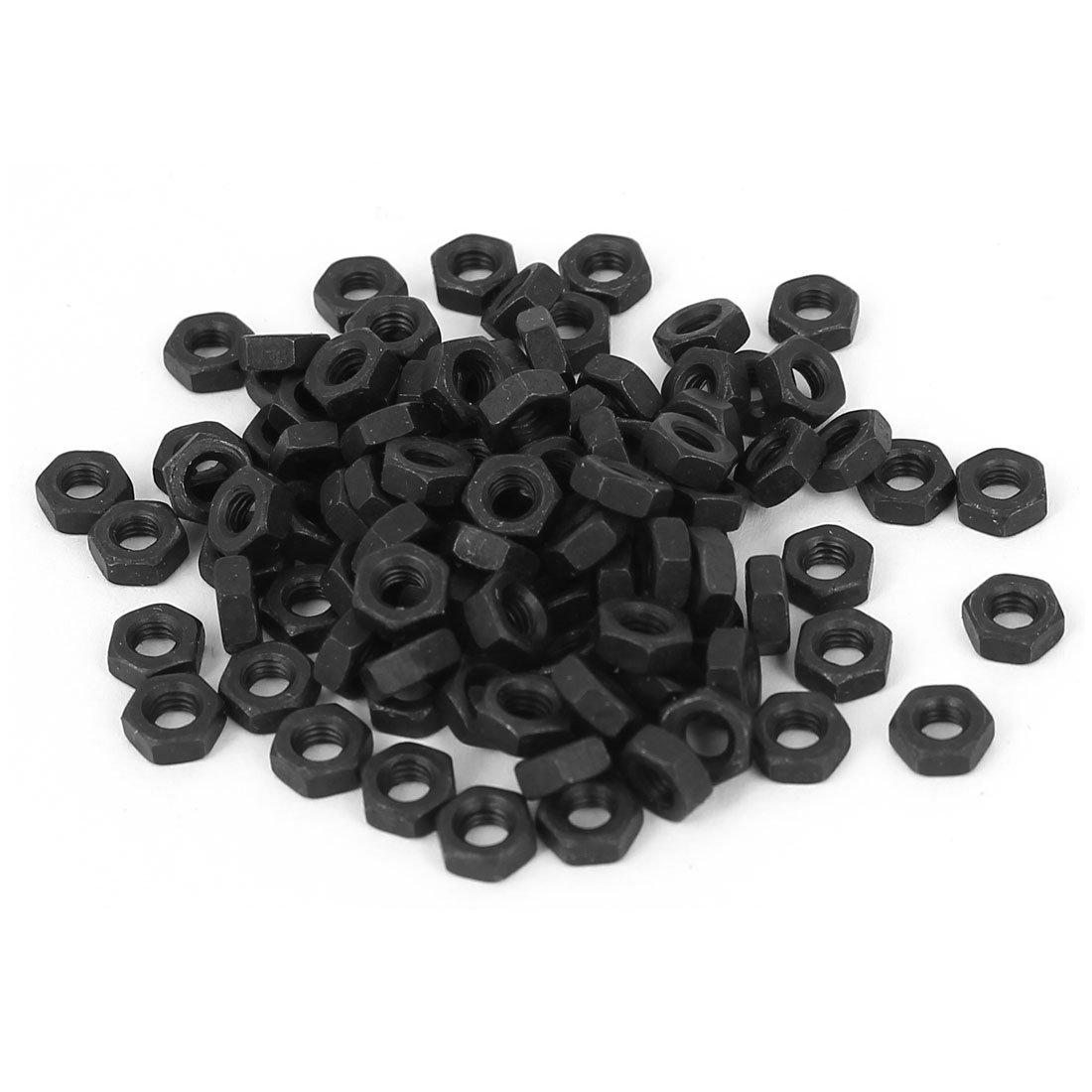

| M3 Nuts |  | Amazon | 23 | Hex Nut Black Carbon Steel |

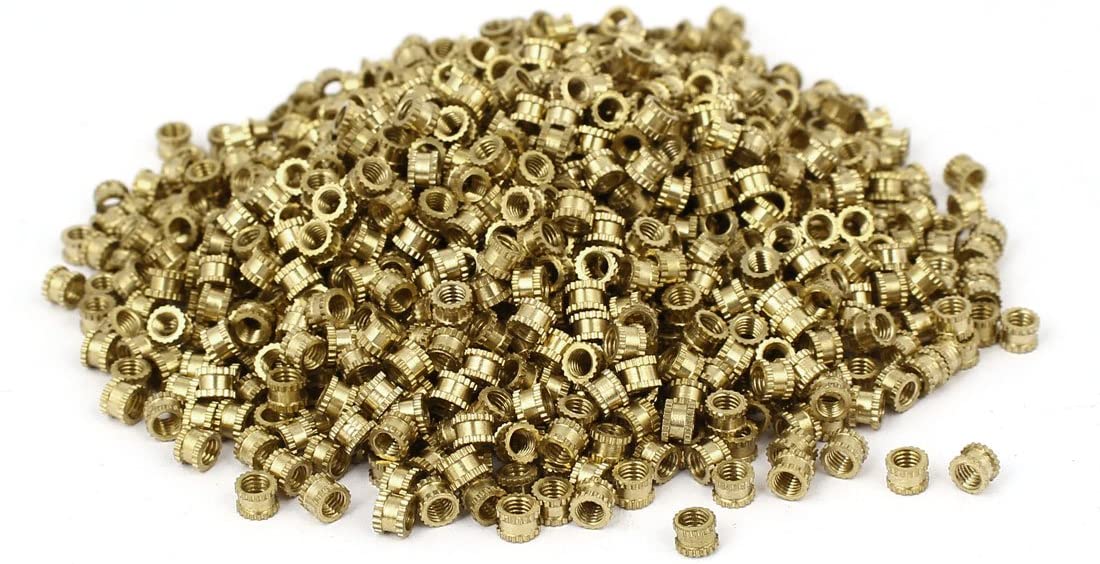

| M3 Insert |  | Amazon | 4 | M3x3.2mmx4.1mm Brass Female Threaded Knurl Insert Embedded Nut Fastener |
| M2 x 12mm |  | Amazon | 4 | M2 Phillips Round Pan Head |
| M2 x 8mm |  | Amazon | 2 | M2 Phillips Round Pan Head |

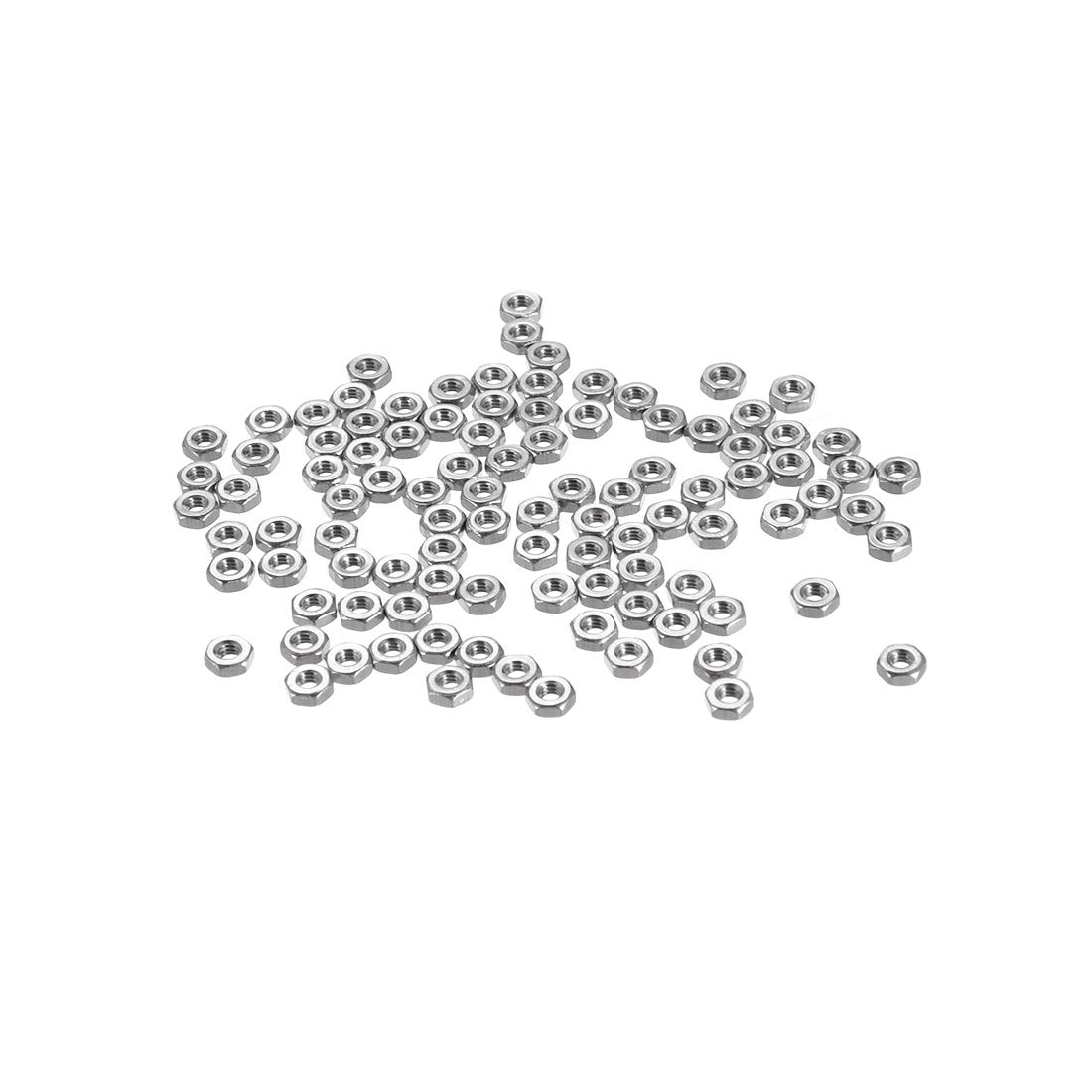

| M2 Nuts |  | Amazon | 2 | Hexagon Nut, Stainless Steel 304 |

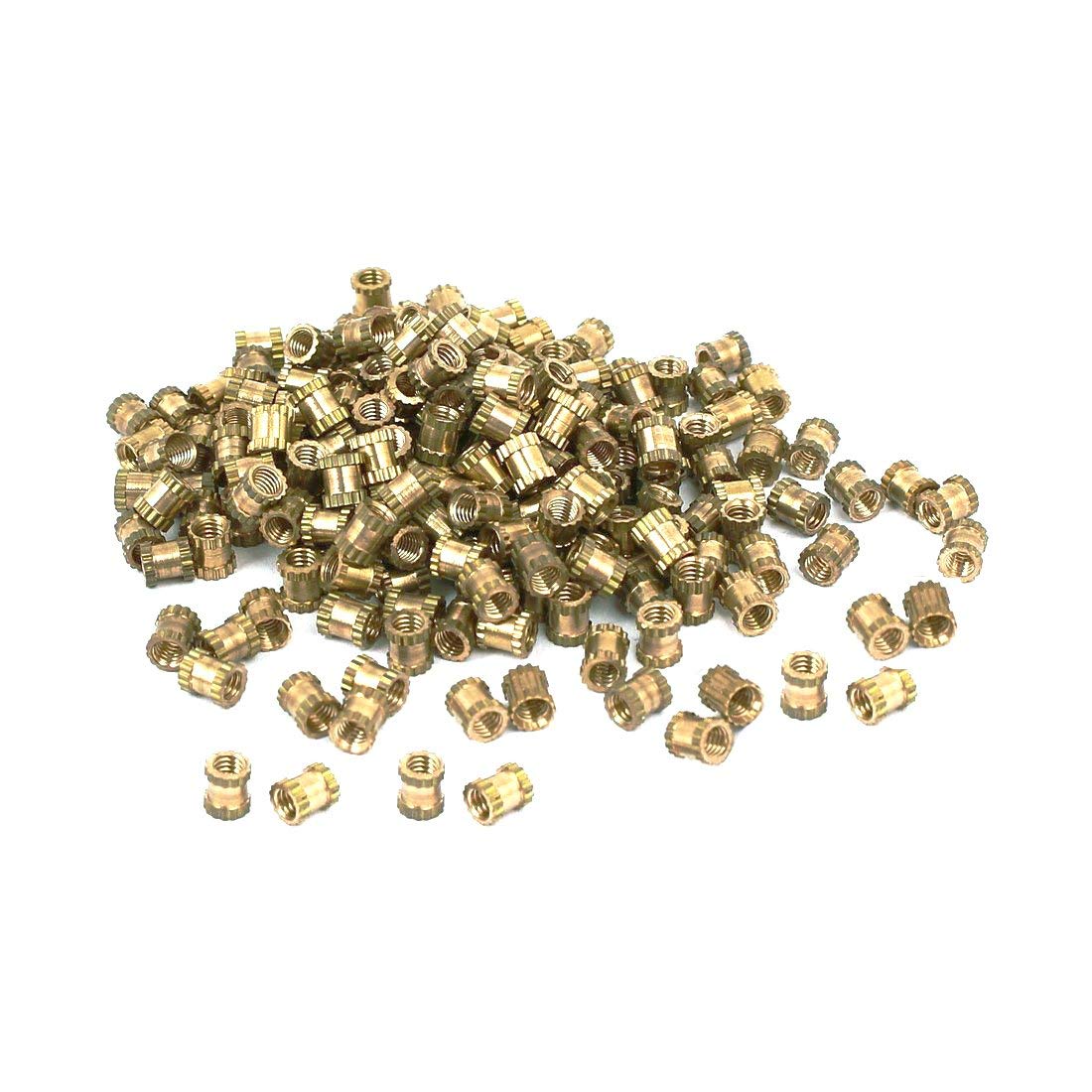

| M2 Brass Insert |  | Amazon | 4 | M2 Brass Cylindrical Knurled Threaded Insert Embedded Nuts |
