Custom Built Parts
Common parts¶
| Part | Image | Qty. Need | Note |
|---|---|---|---|

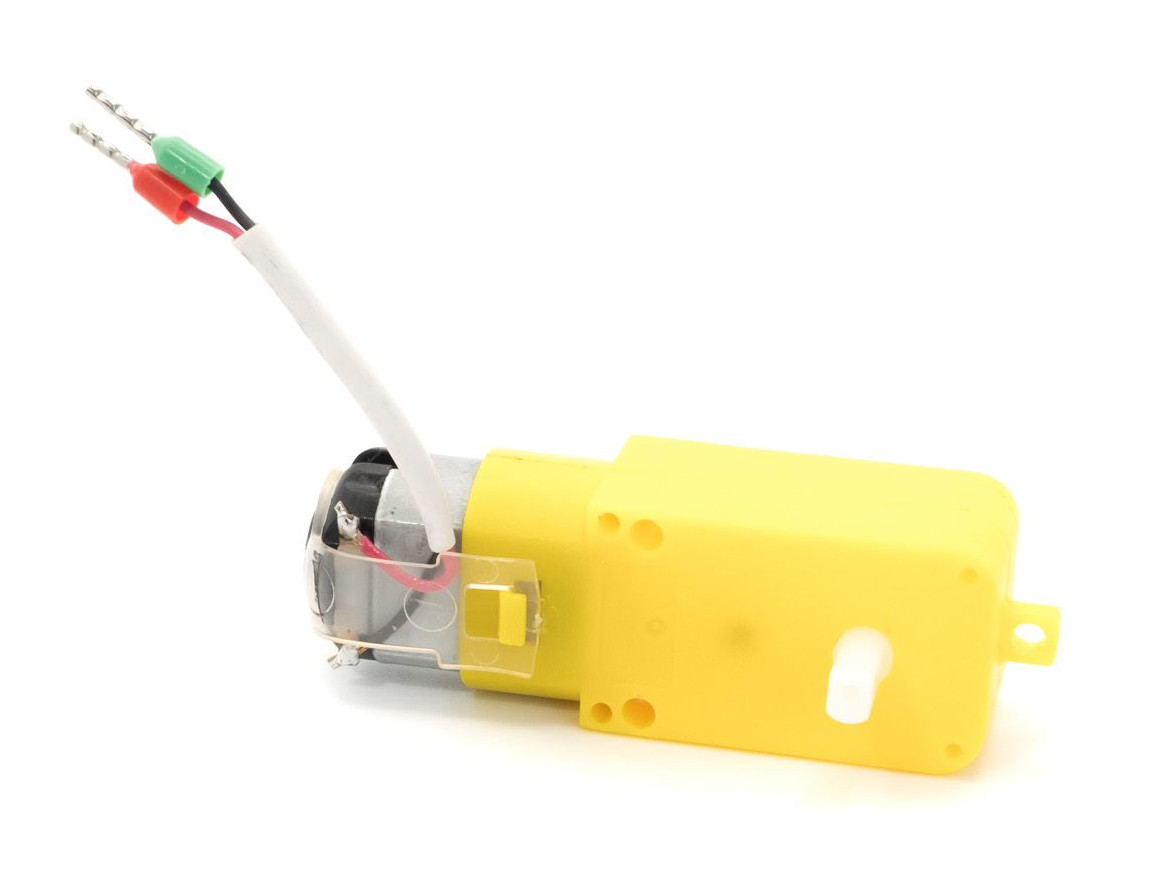

| Motors with wires and connectors |  | 2 | Wires were cut to correct size and crimped with ferrule terminals |

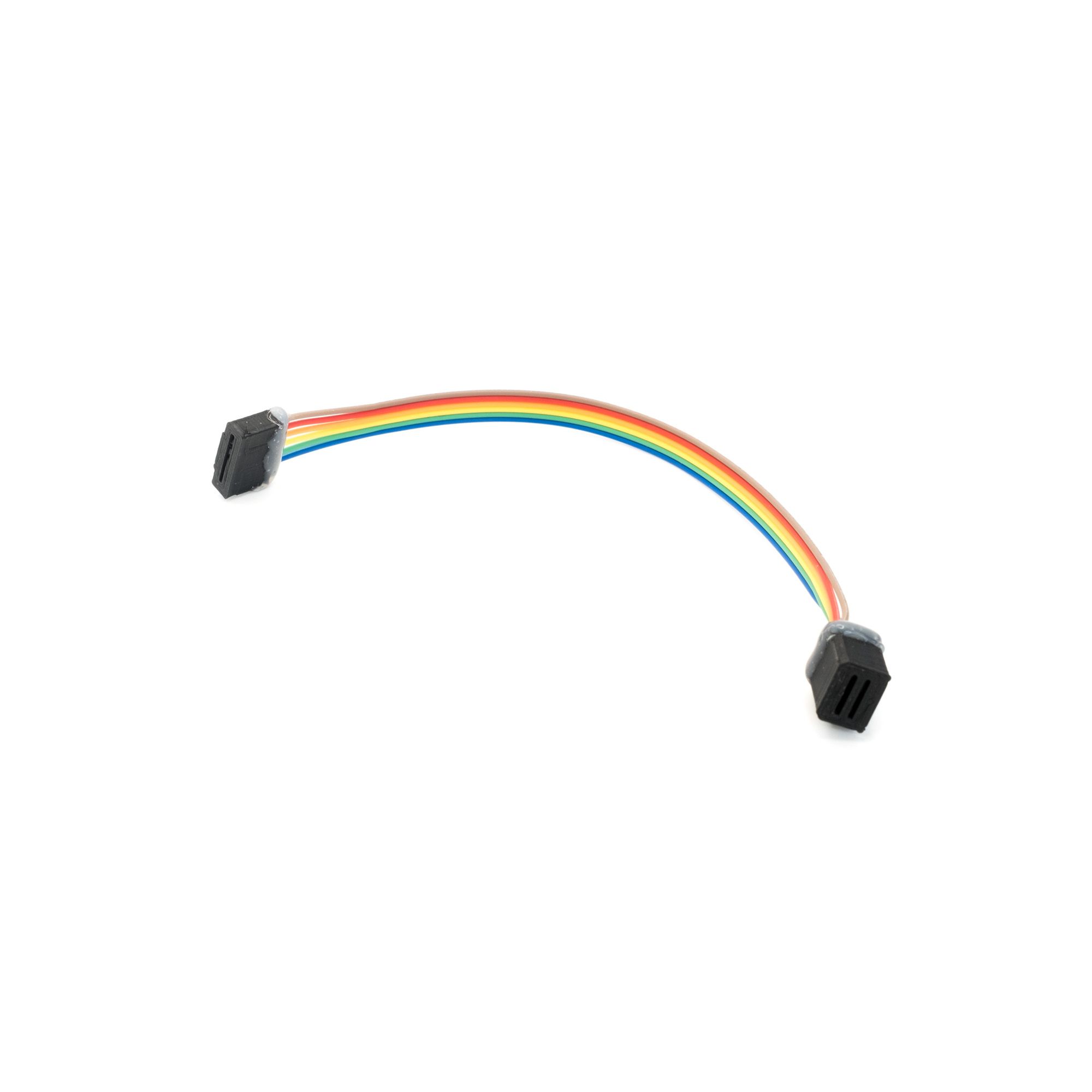

| Jetson to Motor Driver Cable |  | 1 | Connectors were 3D-printed to custom fit with Jetson headers and Motor Driver |
3D-printed parts¶
| Part | Image | Qty. Need | Note |
|---|---|---|---|

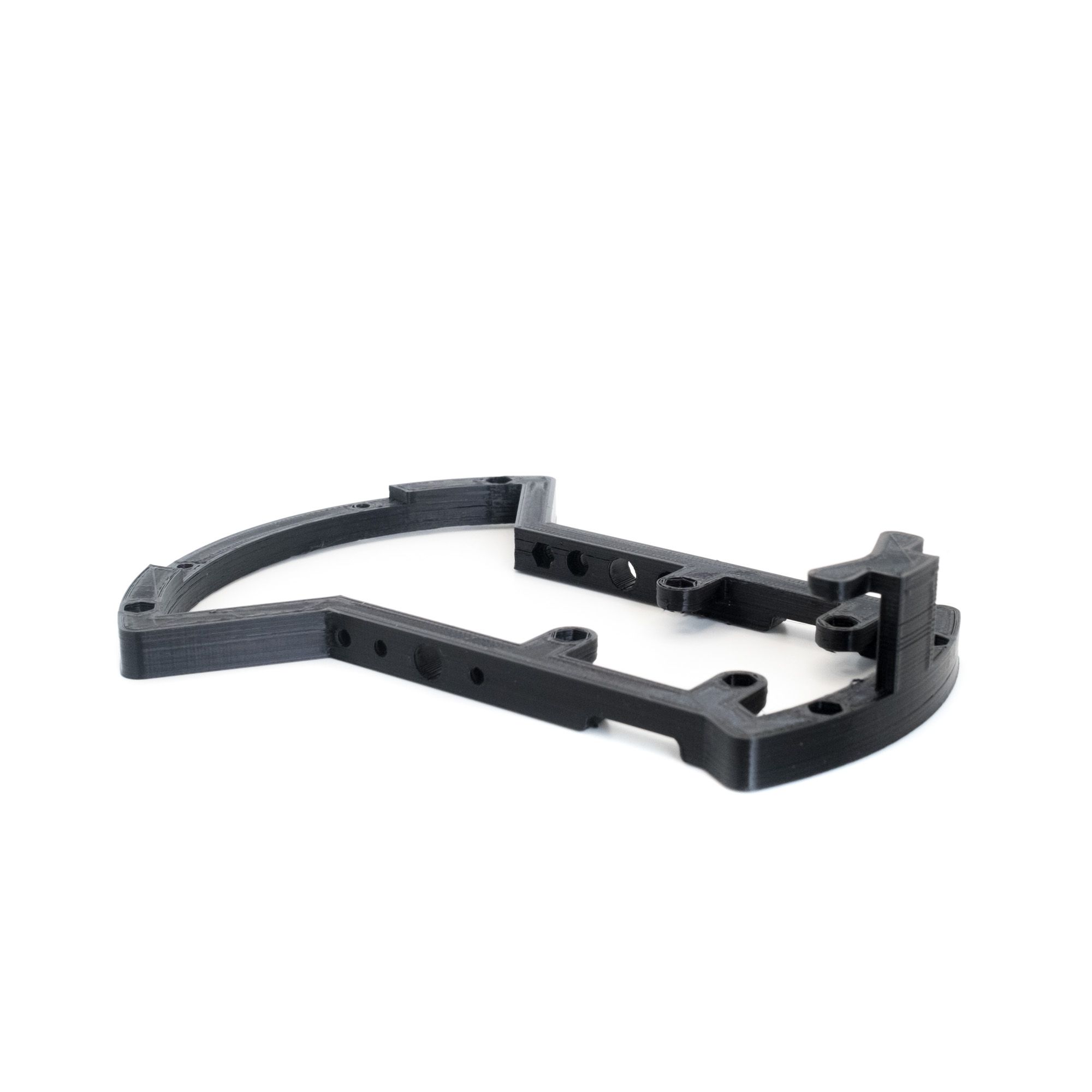

| jDuck Frame |  | 1 | Frame |

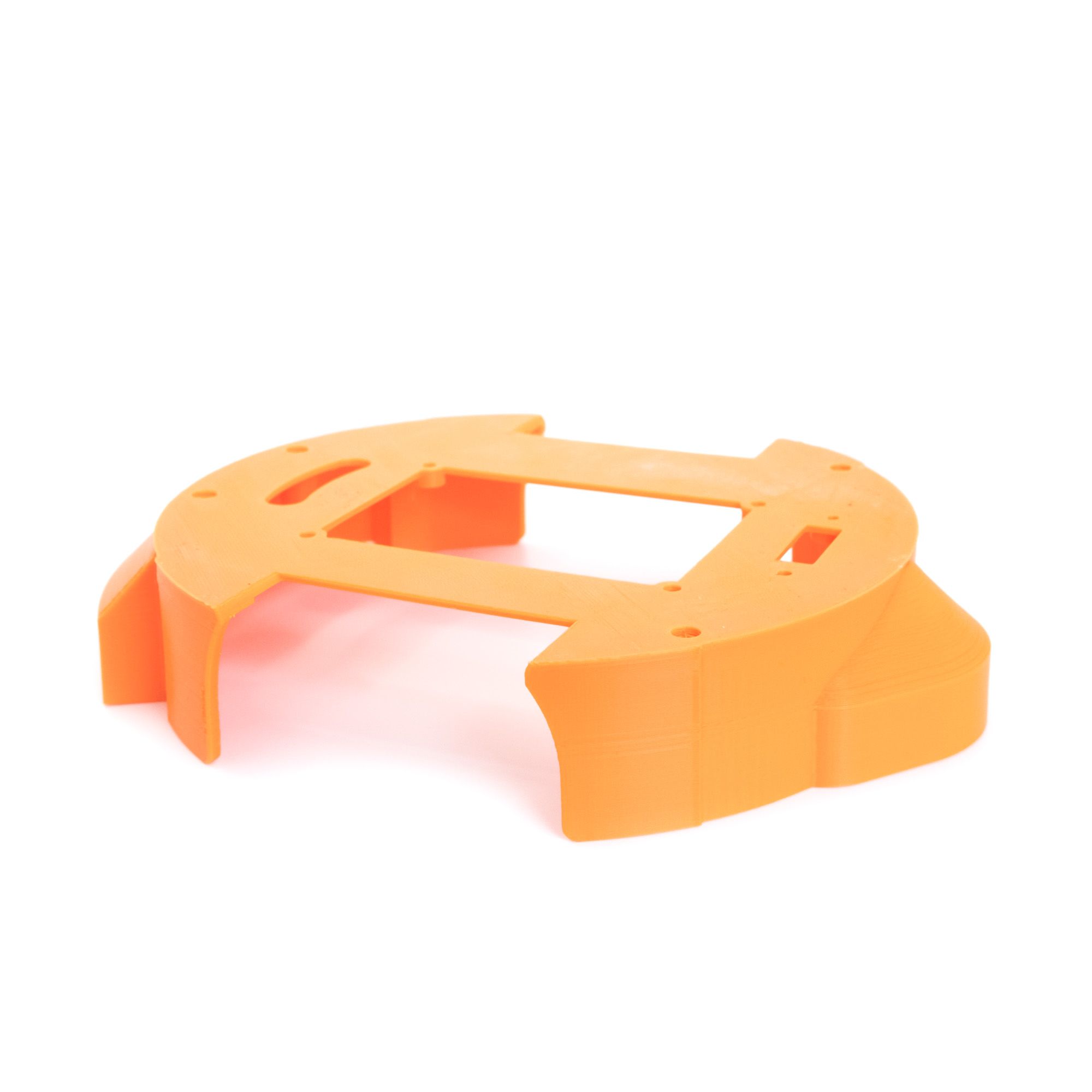

| Top Cover |  | 1 | Top Cover |

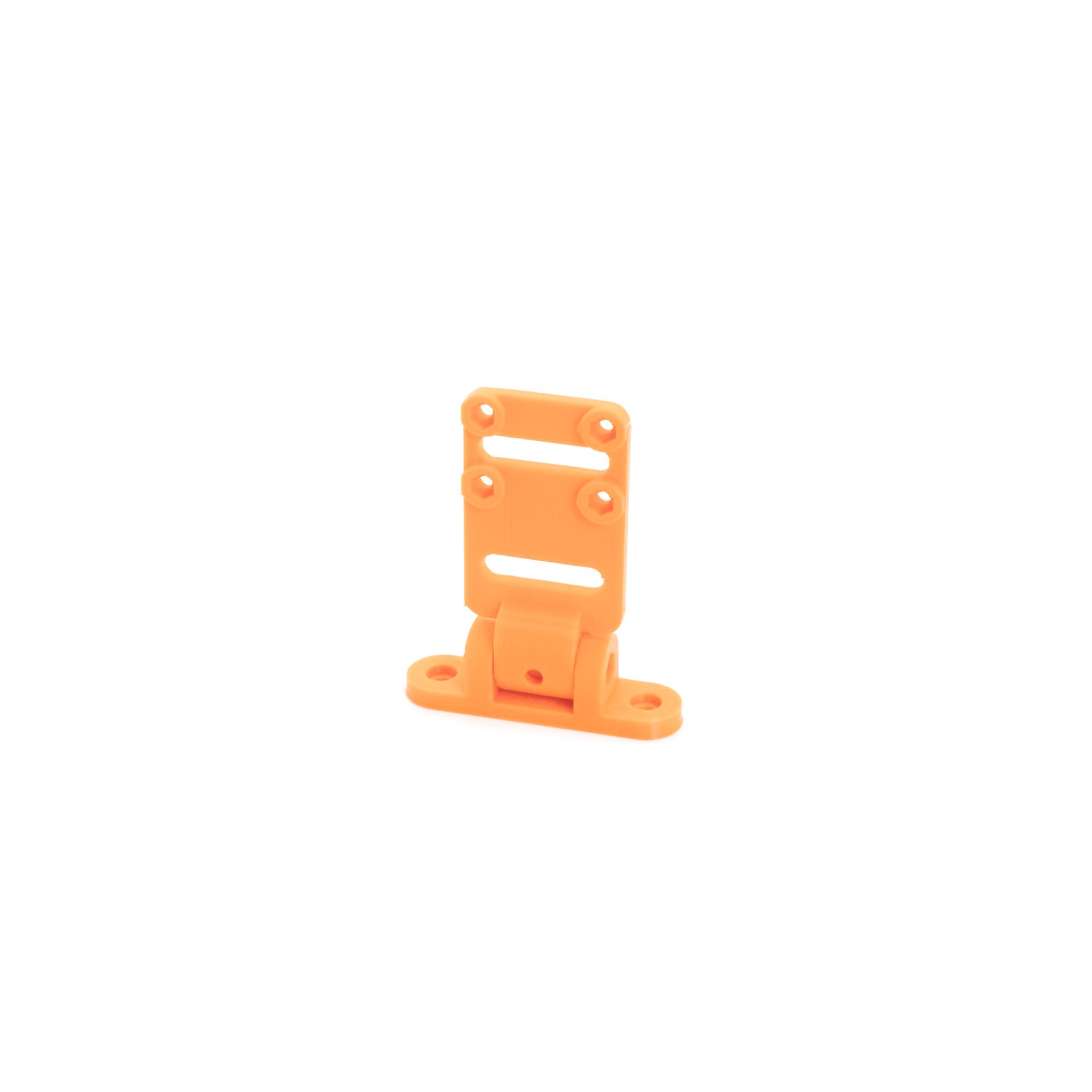

| Camera Holder Set |  | 1 | Camera holder with adjustable angle |

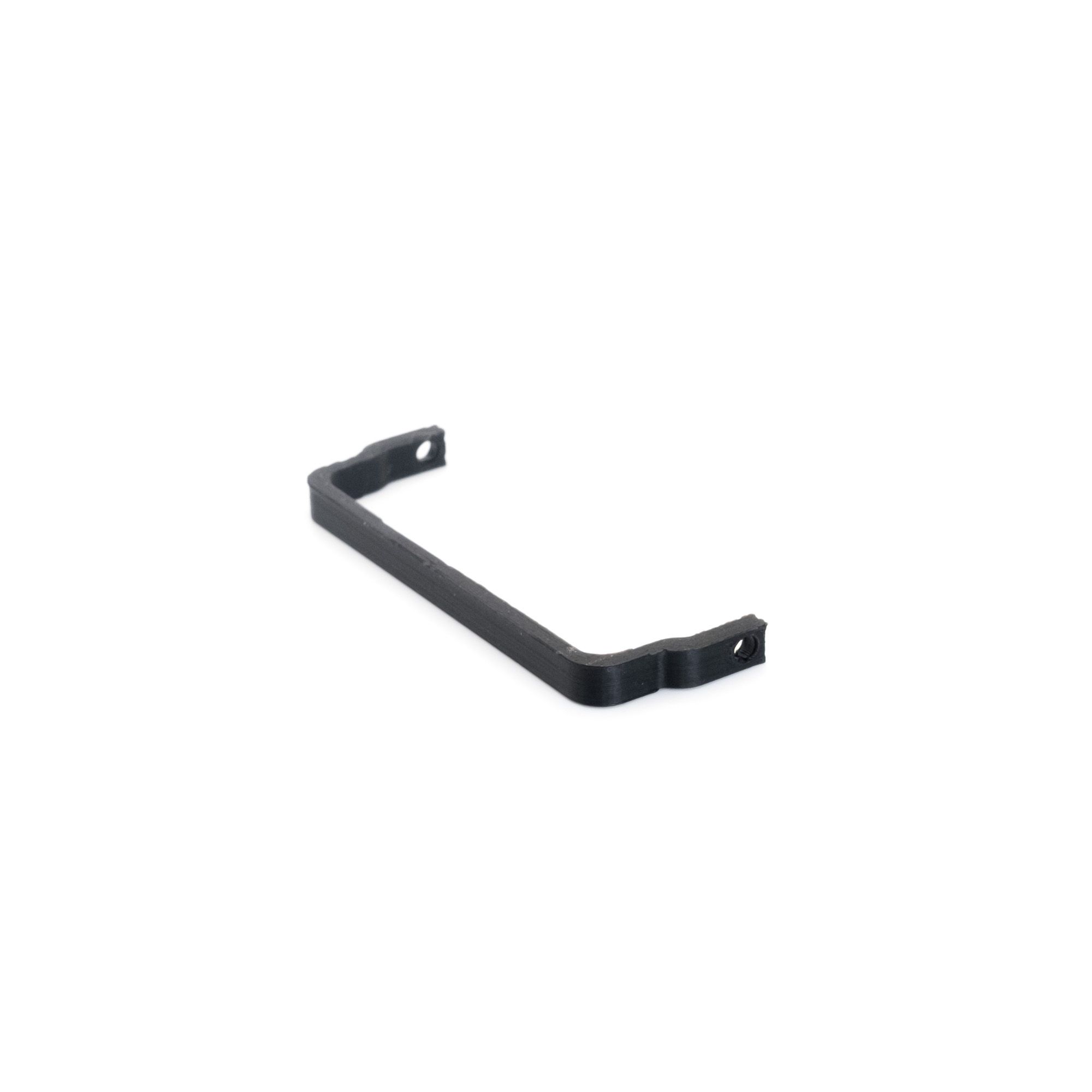

| Battery Strap |  | 1 | Secure the power bank to the bottom frame |

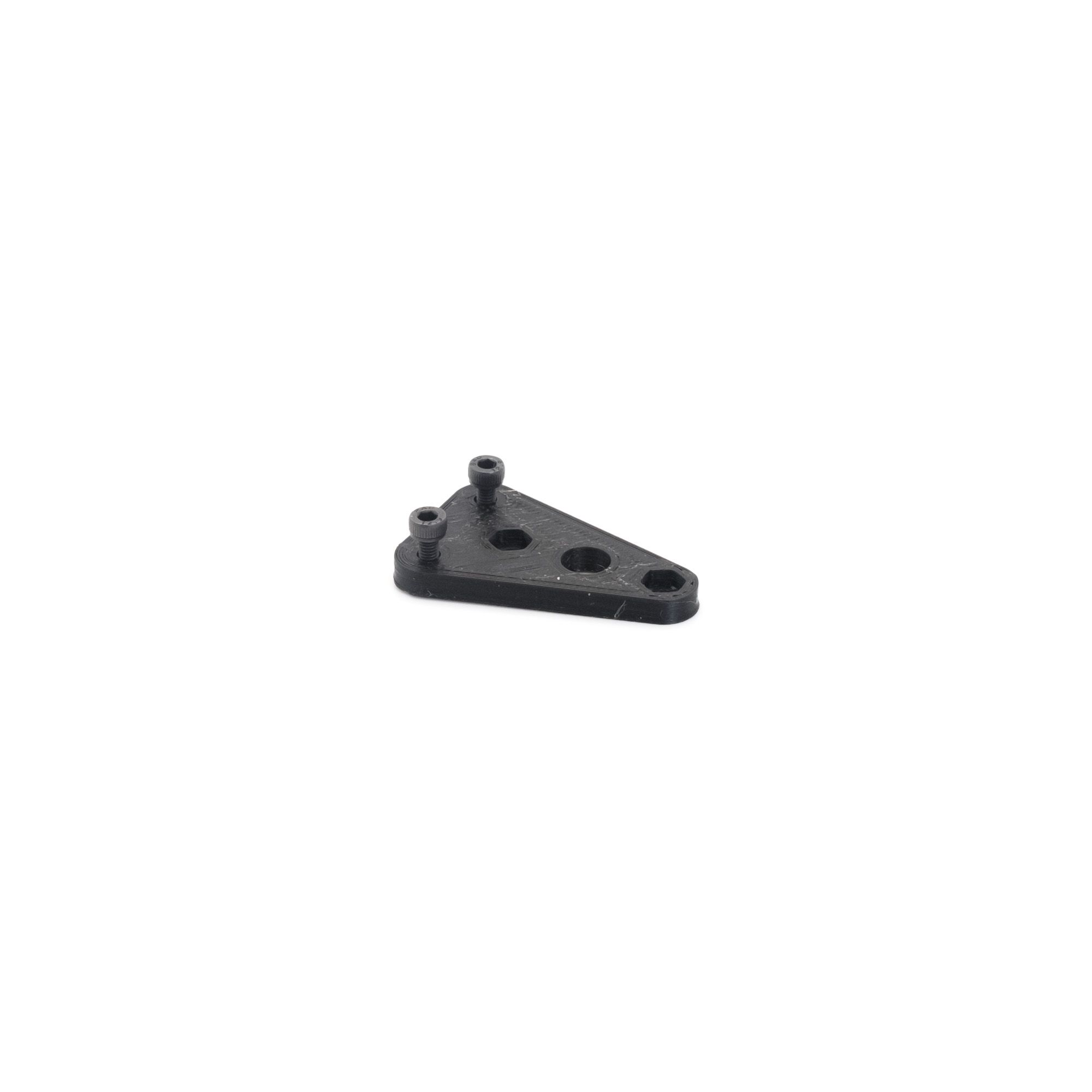

| DC Motor Base |  | 2 | Connect DC motors to the bottom frame |

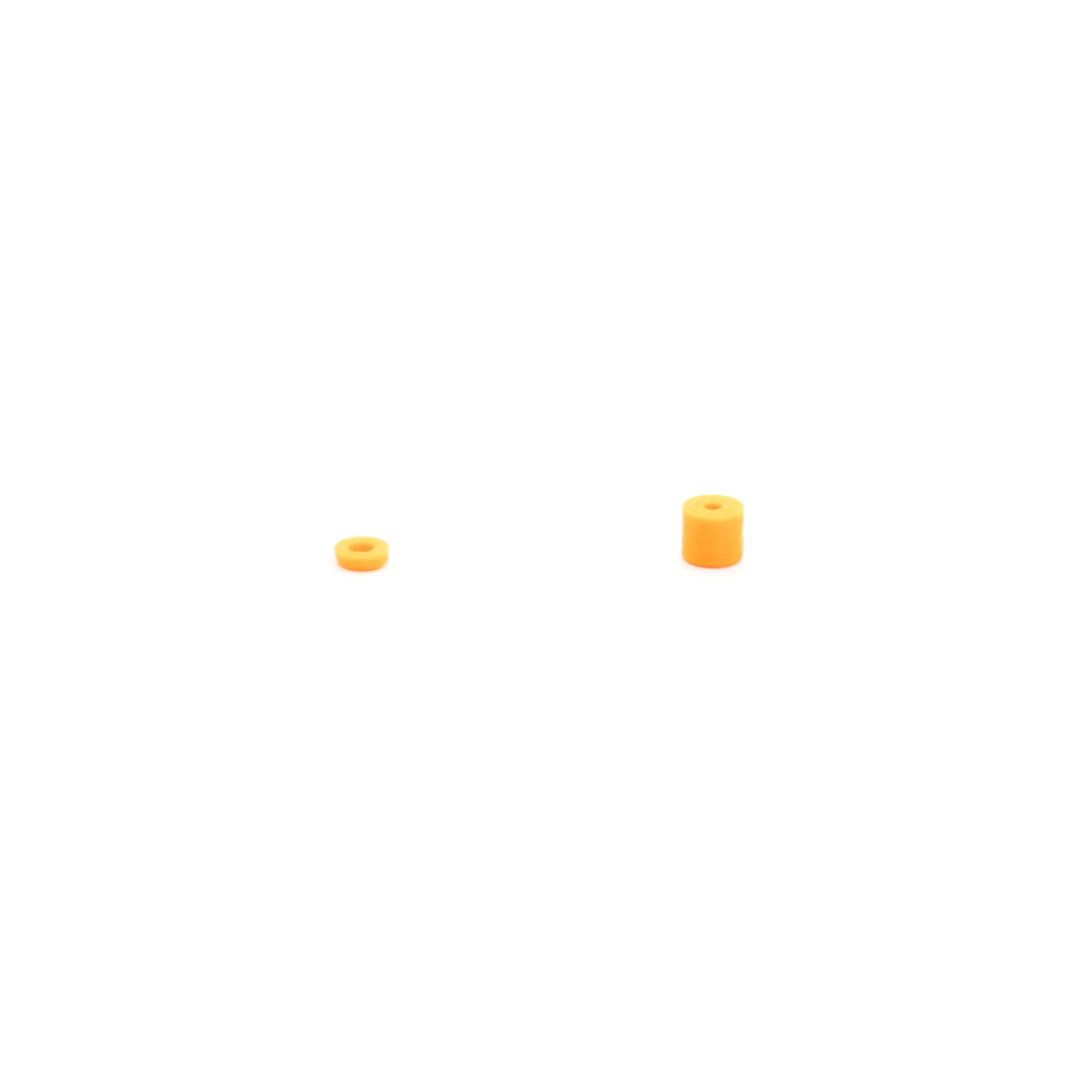

| Spacers |  | 10 | Spacers |
